Open frame

Low noise

Model

LHGF-385

Rated Power

280KW

350KVA

Standby Power

308KW

385KVA

Rated Current

Rated Voltage

127/220, 220/380, 230/400, 240/415 V

Rated Frequency

50HZ / 60HZ

Rated Speed

1500rpm / 1800rpm

Start Control method

Electric CD24V

Output Factor

COS Φ= 0.8 (lag)

Noise (LP7m)

Open：95dB；Silent：70-75dB

Engine Brand

Yuchai

Engine Model

YC6MK460L-D20

Engine Power

338KW

Cylinder Diameter Stroke

123×145(mm)

Displacement

10.338L

Speed Adjustment Mode

Mechanical/Electronic speed regulation

Air Intake Mode

Turocharging with intercooler

Type

In-line, four-stroke, water-cooled, direct injection

Number of Cylinders

6 cylinder

Generator Brand

Hutai/Stamford/Leroy Somer/Marathon

Rated Power

280KW

Rated Capacity

350KVA

Insulation Grade

H

Protection Level

IP21

Mode of Connection

Three-phase Four-wire

Accommodation Mode

AVR (automatic voltage regulator）

Brand

Longhong/SmartGen/ComAp/Deepsea

Protective function：low oil pressure, high water temperature, overspeed/low frequency, high/low voltage, overcurrent, etc

Protective function：ensure automatic switching to backup power supply in case of main power
failure, thereby ensuring the continuity of power supply

A parallel cabinet is a specialized distribution cabinet used to operate multiple gensets (uninterruptible power supplies) in parallel. It realizes synchronous output, current sharing control, and system management of multiple gensets, providing greater power and higher reliability redundant uninterruptible power supply protection for critical loads

Remote control enables real-time monitoring, remote start stop, parameter adjustment, and fault warning of generator sets, ensuring stable equipment operation and significantly improving operation and maintenance efficiency, especially suitable for unmanned power stations or emergency power supply scenarios

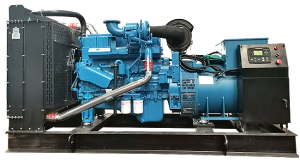

Open type

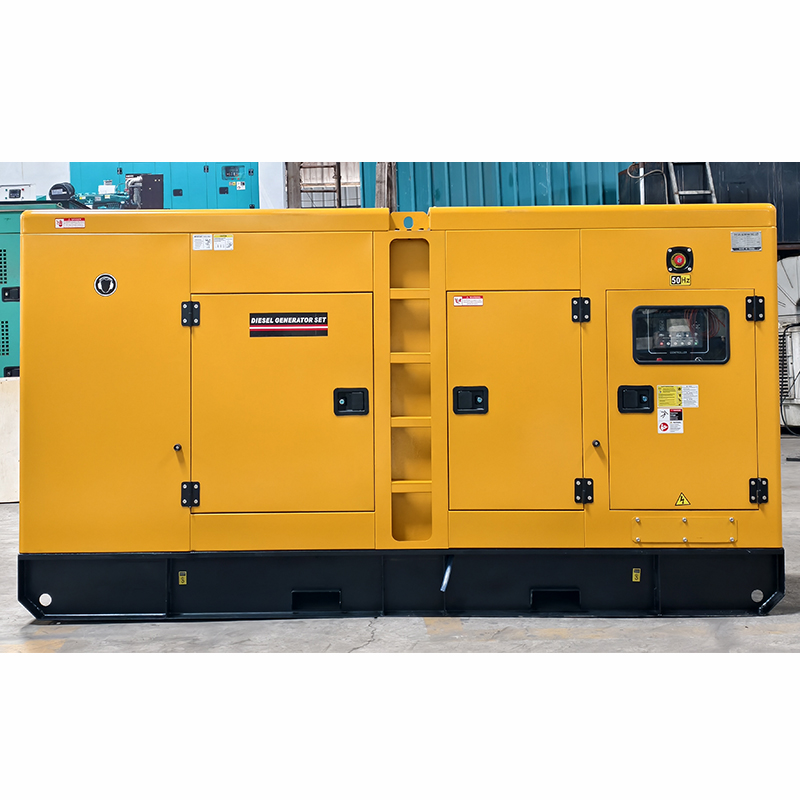

Silent type

Trailer type

Container type

Dimensions of open type genset

Dimensions of silent type genset

L*W*H   3000*1100*1850（mm）

L*W*H    3700*1500*2050（mm）

Weight   2400 （Kg）

Weight   3400 （Kg）
