Open frame

Low noise

Model

LHGF-176

Rated Power

128KW

160KVA

Standby Power

140.8KW

176KVA

Rated Current

Rated Voltage

127/220, 220/380, 230/400, 240/415 V

Rated Frequency

50HZ / 60HZ

Rated Speed

1500rpm / 1800rpm

Start Control method

Electric CD24V

Output Factor

COS Φ= 0.8 (lag)

Noise (LP7m)

Open: 95dB

Silent: 70-75dB

Engine Brand

Cummins

Engine Model

6BTAA5.9-G12

Engine Power

128KW

Cylinder Diameter Stroke

102×120(mm)

Displacement

5.9L

Speed Adjustment Mode

Electronic speed regulation

Air Intake Mode

Turocharging with intercooler

Type

In-line, four-stroke, water-cooled, direct injection

Number of Cylinders

6cylinder

Generator Brand

Hutai/Stamford/Leroy Somer/Marathon

Rated Power

128KW

Rated Capacity

160KVA

Insulation Grade

H

Protection Level

IP21

Mode of Connection

Three-phase Four-wire

Accommodation Mode

AVR (automatic voltage regulator）

Brand

Longhong/SmartGen/ComAp/Deepsea

Protective function：low oil pressure, high water temperature, overspeed/low frequency, high/low voltage, overcurrent, etc

Protective function：ensure automatic switching to backup power supply in case of main power
failure, thereby ensuring the continuity of power supply

A parallel cabinet is a specialized distribution cabinet used to operate multiple gensets (uninterruptible power supplies) in parallel. It realizes synchronous output, current sharing control, and system management of multiple gensets, providing greater power and higher reliability redundant uninterruptible power supply protection for critical loads

Remote control enables real-time monitoring, remote start stop, parameter adjustment, and fault warning of generator sets, ensuring stable equipment operation and significantly improving operation and maintenance efficiency, especially suitable for unmanned power stations or emergency power supply scenarios

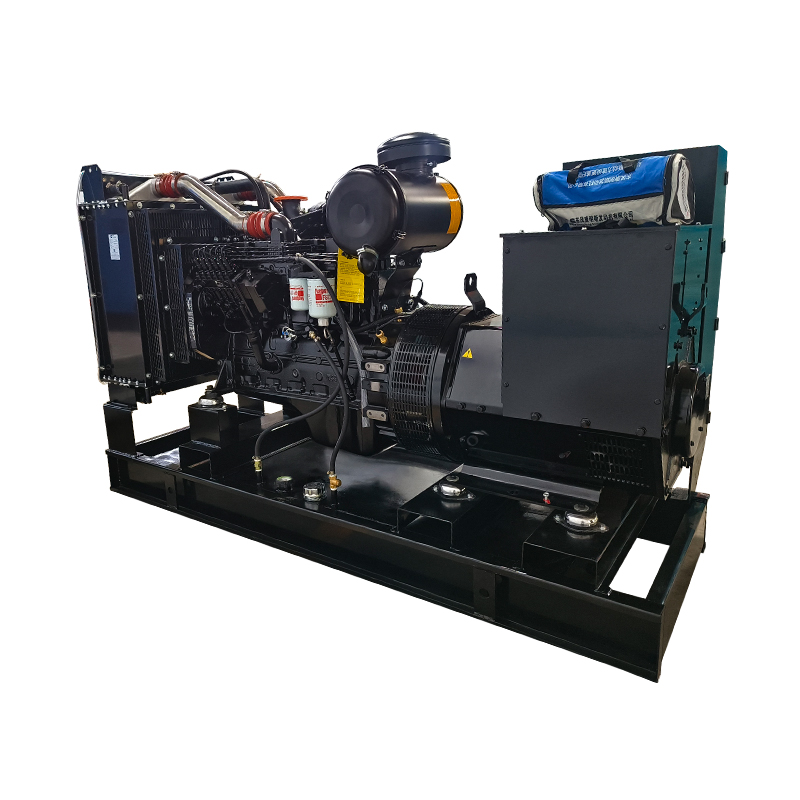

Open type

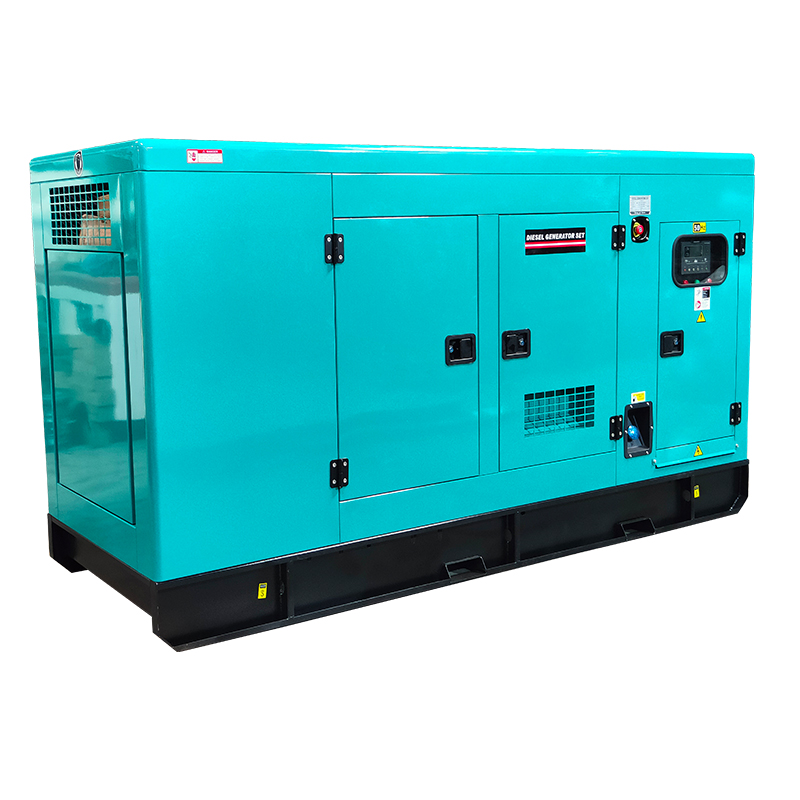

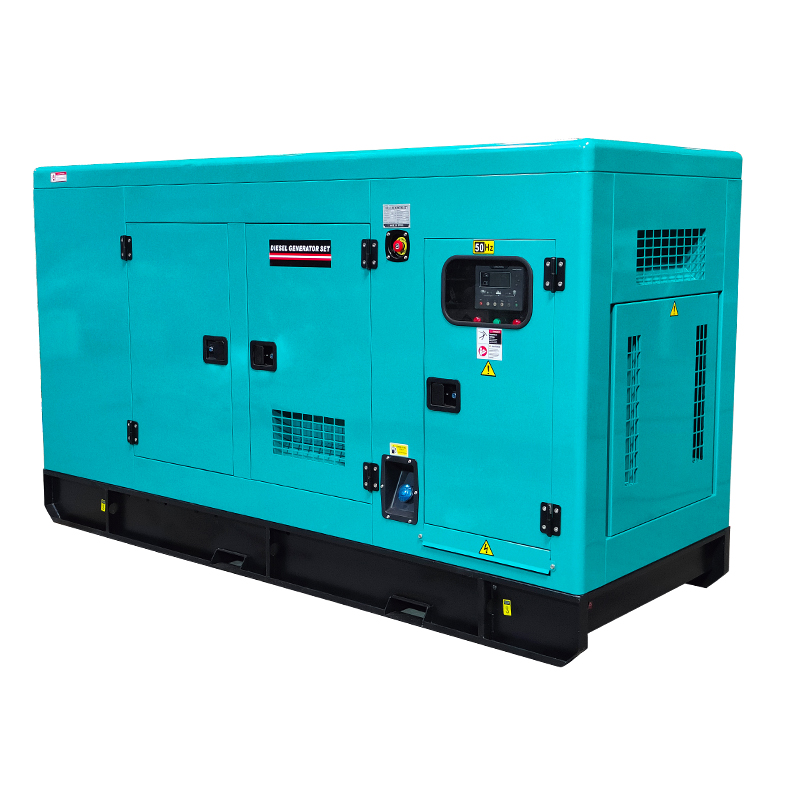

Silent type

Trailer type

Container type

Dimensions of open type genset

Dimensions of silent type genset

L*W*H   2330*850*1400（mm）

L*W*H    2900*1100*1600（mm）

Weight   1300 （Kg）

Weight   1700 （Kg）
