Open frame

Low noise

Model

LHGF-82

Rated Power

60KW

75KVA

Standby Power

66KW

82.5KVA

Rated Voltage

127/220, 220/380, 230/400, 240/415 V

Rated Frequency

50HZ / 60HZ

Rated Speed

1500rpm / 1800rpm

Start Control method

Electric CD24V

Output Factor

COS Φ= 0.8 (lag)

Noise (LP7m)

Open: 95dB

Silent: 70-75dB

Engine Brand

FAWDE

Engine Model

4110/125Z-09D

Engine Power

65KW

Cylinder Diameter Stroke

110*125(mm)

Displacement

4.75L

Speed Adjustment Mode

Electronic speed control

Air Intake Mode

Turbocharging

Type

In-line, four-stroke, water-cooled, direct injection

Number of Cylinders

4 cylinder

Generator Brand

Hutai/Stamford/Leroy Somer/Marathon

Rated Power

60KW

Rated Capacity

75KVA

Insulation Grade

H

Protection Level

IP23

Mode of Connection

Three-phase Four-wire

Accommodation Mode

AVR (automatic voltage regulator）

Brand

Longhong/SmartGen/ComAp/Deepsea

Protective function：low oil pressure, high water temperature, overspeed/low frequency, high/low voltage, overcurrent, etc.

Protective function：ensure automatic switching to backup power supply in case of main power
failure, thereby ensuring the continuity of power supply.

A parallel cabinet is a specialized distribution cabinet used to operate multiple gensets (uninterruptible power supplies) in parallel. It realizes synchronous output, current sharing control, and system management of multiple gensets, providing greater power and higher reliability redundant uninterruptible power supply protection for critical loads.

Remote control enables real-time monitoring, remote start stop, parameter adjustment, and fault warning of generator sets, ensuring stable equipment operation and significantly improving operation and maintenance efficiency, especially suitable for unmanned power stations or emergency power supply scenarios

Open type

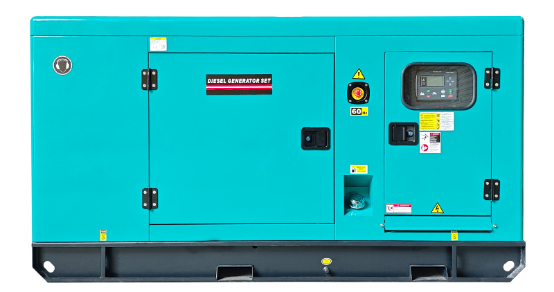

Silent type

Trailer type

Container type

Dimensions of open type genset

Dimensions of silent type genset

L*W*H  1950*900*1350（mm）

L*W*H    2600*1000*1320（mm）

Weight   880（Kg）

Weight    1180（Kg）
